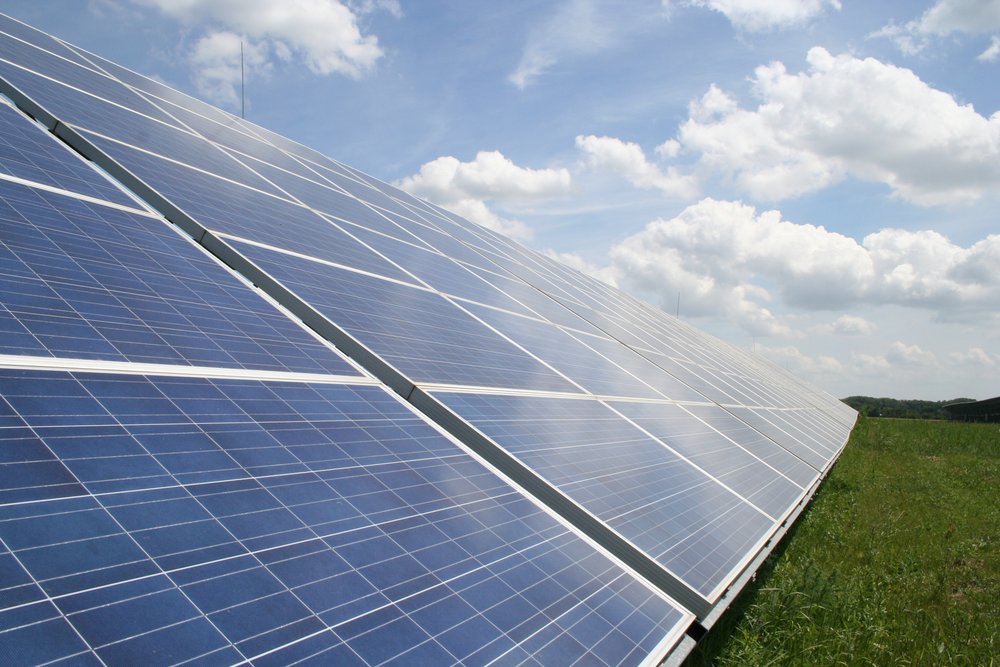

ProSoft Technology CompactLogix Module utilized in solar field.
Whether it’s electric luxury cars or programmable automated thermostats you can control via your smartphone, we’ve been hearing a lot about going green lately. With many areas of the world becoming more concerned with global warming, we’ll be hearing more and more about green energy for years to come.
With these concerns about global warming, many areas of the world are moving toward renewable energy, including wind and solar. This is especially true in Europe, where the European Union has mandated all associated countries to have 20 percent of energy production through renewables before the year 2020.
Because of the geographical location, most of the Slovakian power districts decided to use photovoltaic solar plants to achieve their 20 percent goal.
InForm Technologies, in Slovakia, is one of the companies tasked with meeting the European Union mandate in that country. IFT, established in 2005, has passed a certification process allowing it to work with the national power grid company there. It, and other power system integrators in Slovakia, have installed roughly 500 power plants throughout the country.
The key objective for IFT when bidding on a particular 1 MW solar plant: Price out the competition while still delivering data securely and reliably.
“The objective was to have a cost effective solution to beat the competition. The Rockwell Automation system combined with the ProSoft Technology cards was about 30 percent more cost effective than the nearest competitor. ProSoft Technology's connectivity solution was chosen not only for its cost effectiveness, but for its exclusivity. It's the only connectivity solution for the IEC 60870-5-101 protocol that would work with a Rockwell Automation PLC,” said Jozef Lezo, IFT Managing Director.
Jozef Lezo learned of ProSoft Technology through his local Rockwell Automation distributor, Control Tech Slovakia. Control Tech suggested an Allen-Bradley® CompactLogix™ PLC and a ProSoft MVI69-101s module.
IFT utilized a CompactLogix 1500 with the ProSoft card as a Remote Terminal Unit to control the photovoltaic process. The PLC is collecting data from power monitors while controlling power relays. The types of data monitored are current, voltage, network status, switch status sand the amount of energy produced by photovoltaic panels. All of this data is sent using the IEC 60870-5-101 protocol to the power grid company system using ProSoft Technology's MVI69-101S card and a separate cellular GSM modem.
The solar field is fully automatic and autonomous. It requires no maintenance people.
IFT was able to install a system to obtain data reliably, while being cost effective. This system can now be reinstalled elsewhere in the country, should it be needed. In addition to being cost effective, the new system is also flexible. Additional features, such as sun tracking, could be added in the future.
The power grid is a bit greener now in Slovakia thanks to this and many of the other renewable energy plants installed by IFT. "Slovakia now has 20 percent of its energy coming from renewable resources," Jozef Lezo said. This meets the European Union's mandate with years to spare.
IFT is mainly focused on projects in the area of electroenergetics, including transformers, electrical protection and control systems. The company is heavily involved in renewables and isn't stopping with just power plants. The company is working on the concept of electromobility, and is a distributor and integrator of electric car power charging stations. The company also uses its own fleet of electric automobiles.
