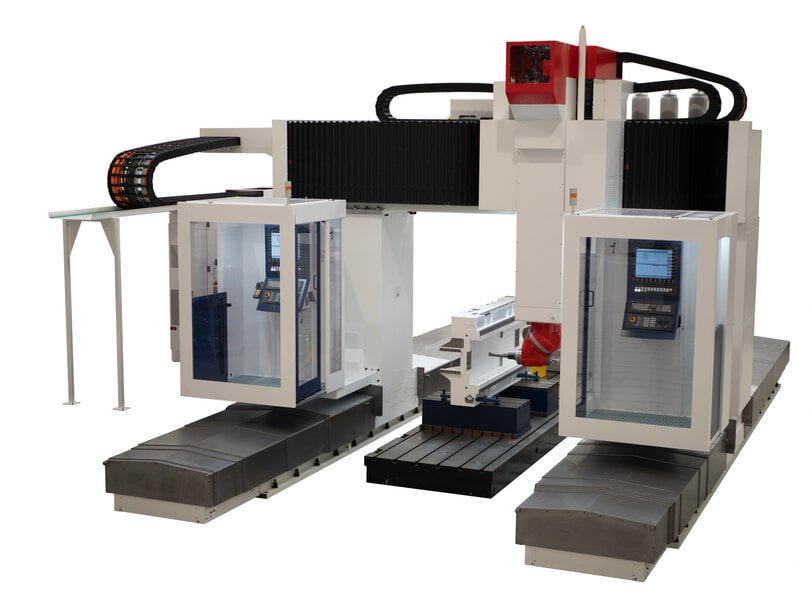

EMCO Mecof Powermill G3 PC3: robust structure without compromising on agility
Although the Powermill G3 PC3 was designed by Mecof to meet the needs of customers with limited space but a strong focus on large-scale production, this machine leaves nothing to chance and is in no way inferior to its larger counterparts. Built for an Italian customer involved in general mechanics, this machine stands out for its ability to combine structural robustness and compactness while ensuring a large working area, high performance and Industry 4.0 digital solutions.
www.emco-bau.com
Equipped with Heidenhain TNC 640 HSCI numerical control and Heidenhain's Industry 4.0 package, the Powermill G3 PC3 makes integration with the digital world one of its strengths.
Compact but capable
With axis strokes of X = 8,000 mm, Y = 4,500 mm and Z = 1,500 mm, the Powermill G3 PC3 is ideal for machining large components. The 8,000 x 3,000 mm work surface, with a load capacity of up to 15,000kg/m² (class II DIN 876), ensures maximum stability even during the most demanding operations.
The heart of the machine is the universal bi-rotary head with automatic millesimal positioning, 38 kW power, maximum torque of 615 Nm and speeds of up to 6,000 rpm, with ISO 50 tool attachment. This combination allows for a wide range of machining operations, from heavy roughing to high-precision finishing.
The picture is completed by a 60-position chain tool changer, a chip evacuation system, a cooling system and advanced solutions for the latest generation of tool and workpiece control. Specifically, the tool changer is fixed to the crossbeam shoulder. This system, combined with the sliding exchange arm, ensures speed and reliability in tool replacement operations, optimising cycle times. Chip evacuation with longitudinally arranged ramp conveyors is quick and smooth. The cooling system, with dual delivery
(near the spindle and through the spindle), ensures tool efficiency and longevity, supported by a multi- stage filtration system up to 25 µm. At the customer's request, this system is served by a collection tank and a filtering tank, each with a capacity of 1000 litres. Filtering degree: 1) 60 µm and 2) 30 µm, carried out by means of cartridge filters positioned on the filtering tank.
Mecof's Powermill G3 PC3 is not only a high-performance gantry milling machine, but a true intelligent production centre. Thanks to its combination of power, precision and digital connectivity, it is a strategic choice for companies wishing to increase productivity and competitiveness by investing in a Made in Italy machine that embodies the engineering tradition and innovative capacity typical of our country.

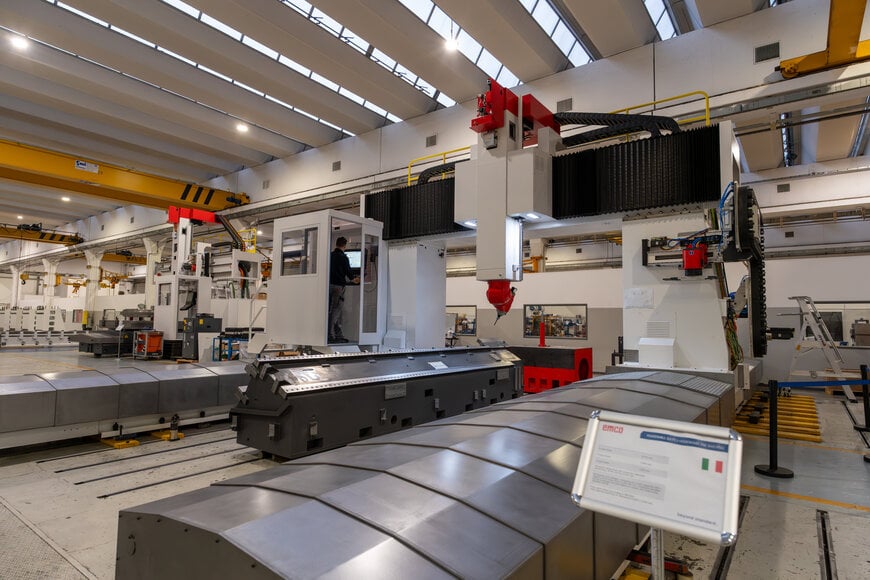

POWERMILL G3 at Mecof Open Days 2025

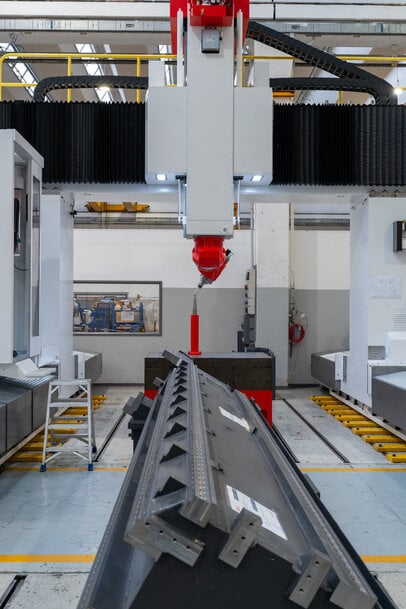

Universal bi-rotary head with automatic millesimal positioning
EQUIPMENT:
Powermill G3 PC3
CNC Heidenhain TNC 640 HSCI
Travel in X 8.000 mm
Travel in Y 4.500 mm
Travel in Z 1.500 mm
Universal bi-rotary head with automatic millesimal positioning, 38 kW, 615 Nm, 6000 rpm.
Industry 4.0 options package: Heidenhain TNC Remo, allows remote loading of instructions and part programmes; Heidenhain DNC, allows automated connection of the machine to the factory logistics system; CAPR, adaptive control option.
Chain tool changer and exchange arm fixed on the column, 60 positions, allows tool exchange with the spindle in a horizontal position.
Heidenhain wireless remote control panel, model HR 550 FS. As an alternative to the HR520 remote control panel provided with the base machine.
Renishaw RMP60 radio measurement probe
Kinematic measurement
Double chip conveyor
Dual cooling system: 1) delivery near the spindle (pressure 6 bar, flow rate 28 l/min) via manifolds and rigid adjustable nozzles; 2) supply through the spindle (pressure 20 bar, flow rate 20 l/min) via a hole coaxial with the spindle for use with tool holders with a central hole (tools according to DIN 69871/A), served by a collection tank and a filter tank, each with a capacity of 1000 litres. Filtering degree: 1) 60 µm and 2) 30 µm, carried out by means of cartridge filters positioned on the filtering tank.
Coolant flow rate adjustment
Worktop (class II according to DIN 876); load capacity 15,000 kg/m² dimensions 8,000x3,000mm
Heidenhain software options for: Global settings-virtual axis and 5-axis machining package including RTCP.
