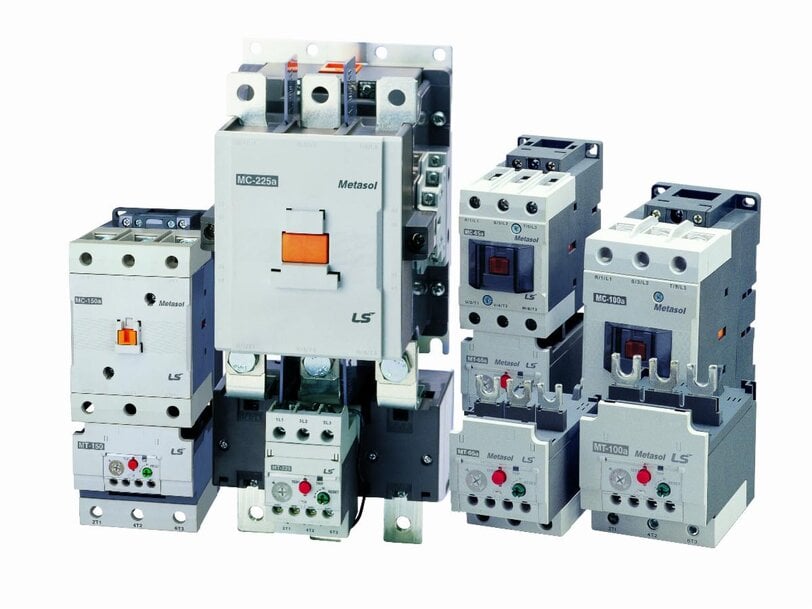

Metasol MS Platform for Industrial Low-Voltage Motor Control

Industrial and commercial power systems require electrical infrastructure that accommodates high safety standards and space constraints. The Metasol MS platform by LS ELECTRIC America is designed specifically for these requirements in sectors such as heavy industry, HVAC, and sustainable energy. By supporting fractional-horsepower to high-horsepower motor loads, the series provides a scalable foundation for modern motor control in environments using 600V or 690V architectures.

Technical Design and Scalability
The platform integrates high-density power switching with arc-containment technology in a compact footprint. This reduction in size allows for greater design flexibility in crowded electrical environments and helps reduce overall control panel dimensions. The series is rated for insulation voltages up to 1,000 V on larger frames and covers a current range from 6 A to 800 A. This versatility allows engineers to employ a consistent platform across diverse industrial power requirements.

Operational Coordination and Protection
A technical characteristic of the Metasol MS series is its achievement of Type II coordination. In a short-circuit event, Type II coordination ensures the contactor remains functional and ready for service, whereas lower coordination levels may require component replacement. This reliability limits operational downtime and decreases maintenance requirements. The contactors work with MT thermal overload relays to provide protection against phase failure and ambient temperature fluctuations, which is necessary for maintaining motor longevity in demanding or non-climate-controlled environments.

Installation and Wiring Mechanics
The physical configuration of the units facilitates simplified installation and maintenance. A four-terminal operating coil allows for wiring access from both the top and bottom, enhancing cable management options within the panel. The system utilizes a modular, tool-free accessory mechanism for the attachment of auxiliary contacts, timers, and mechanical interlocks. Furthermore, integrated 2NO auxiliary contacts on specific interlocking units reduce the necessity for additional add-on blocks, lowering component counts in complex assemblies.

Safety Engineering and Environmental Compliance
Safety features include finger-safe IP20 terminals to prevent accidental contact with live components. The device uses a sealed arc-extinguishing structure that prevents the exposure of arcs to the exterior, protecting nearby sensitive electronics such as Programmable Logic Controllers (PLCs) from electrical interference. High-efficiency coils are employed to minimize heat dissipation and power consumption, which extends the operational life of the unit and surrounding electronics. The hardware is constructed with cadmium-free materials and complies with RoHS standards, alongside certifications from UL, CSA, and CE.

Edited by an industrial journalist, Lekshman Ramdas, with AI assistance.
