Precision in Motion
Neugart launches a new performance class of precision gearboxes.
www.neugart.com

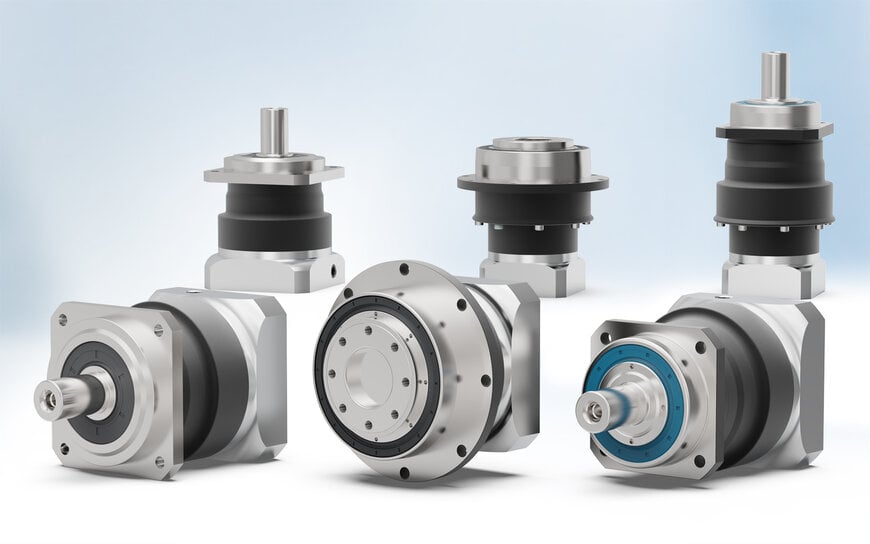

Neugart is expanding its precision portfolio with the new PSNpro, PSFNpro, and PSBNpro gearbox series. (Source: Neugart GmbH)
With a new generation of high-precision gearboxes, Neugart is setting new standards in performance, precision, and reliability. The drive: not only enabling movement but actively shaping it.
We are introducing a new performance class above our existing precision gearboxes with the new PSNpro, PSFNpro and PSBNpro series. These are based on new, innovative gear technologies and the use of new materials in production. The optimized tooth flank quality reduces point load peaks and enables higher torques to be transmitted with the same service life.
We have further developed our precision gearbox series using this technology. The result is the PSNpro, PSFNpro, and PSBNpro series, which set new standards in dynamic applications. In particular, cycle torque has increased significantly, enabling the pro series to rival and even surpass spur gearboxes. For applications involving frequent changes in load and direction, the pro gearboxes are therefore the obvious choice from the Neugart portfolio.
The pro gearboxes utilize the advantages of helical teeth to achieve excellent synchronisation. Transmission fluctuations between the input and output remain extremely low throughout the rotation of the output shaft. This visibly improves process quality and minimizes chatter marks in woodworking machines, for example. At the same time, the gearboxes operate at a particularly low noise level, even under high loads. This improves the system's acoustic properties and stabilizes the machine's overall performance.
Another area of development focused on reducing mass inertia, particularly in small frame sizes. Thanks to the consistent implementation of the modular principle, the input stage is now from frame size 064 smaller than the output stage. This reduces the rotating mass, enabling faster acceleration and braking processes, as well as improving control quality in highly dynamic axes.
Our pro gearboxes will be available from January 2026. We offer the usual gear ratios, sizes, and options for the pro series – without compromise. Even a factory-mounted pinion on the output shaft, ideal for pinion-rack drives, is included as standard.
With the PSNpro, PSFNpro and PSBNpro gearboxes, we are opening a new chapter in precision gear technology. Combining our many years of experience in drive technology with innovation-driven development, we provide future-proof support for mechanical and plant engineering, robotics, and linear technology. This enables us to create reliable solutions that meet the requirements of modern drive technology and help our customers achieve higher productivity in the long term.
